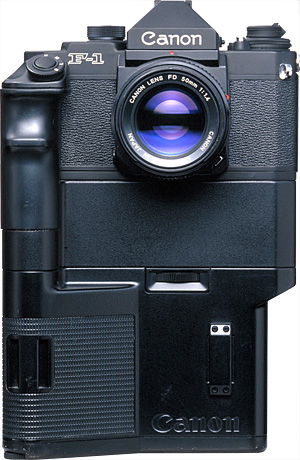

Canon New F-1 High Speed (1984)
-
-
-

Canon New F-1 High Speed (1984)

Based on the New F-1 and equipped with a fixed pellicle mirror, this camera boasted the fastest continuous shooting speed ever. It has a four-axis, horizontal-travel, focal-plane electromagnetic shutter with metal curtains. One of three shooting speeds can be set. At the H setting, the camera can zip through a 36-exposure roll of film in 2.57 sec. at 14 fps.

Metering system has a match needle for stopped-down TTL. The aperture is stopped down automatically during the exposure. The power pack can be attached to the camera bottom or detached and used separately. The camera requires two dedicated power packs (totaling 24 V) housing ten 1.2 V size-AA Ni-Cd batteries. Priced at 1,300,300 yen, the camera was a limited edition for press photographers.

Shutter Four-axis, horizontal-travel, focal-plane electromagnetic shutter with metal curtains. 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000, 1.2000 sec. X-sync at 1/60 sec. No B and self-timer.
Viewfinder Interchangeable eye-level pentaprism. New split-prism rangefinder encircled by microprism rangefinder at center of Laser Matte screen. Thirty-two (13 types) interchangeable focusing screens available for three metering patterns. (The fixed, semi-silvered mirror is coated with 20/1000mm ultra-thin, vapor-deposited Mylar film.) Displayed within the image area are metering range, exposure meter needle and index, shutter speed, overexposure and underexposure warnings, and exposure compensation scale (2 EV).
- Magnification 0.80x
- Coverage 97%
Power Two dedicated 24 V batteries containing ten 1.2 V size-AA Ni-Cd batteries. Battery check with button and green LED.
Size 157 x 70 x 262 mm
Weight 2180 gr
With battery pack
